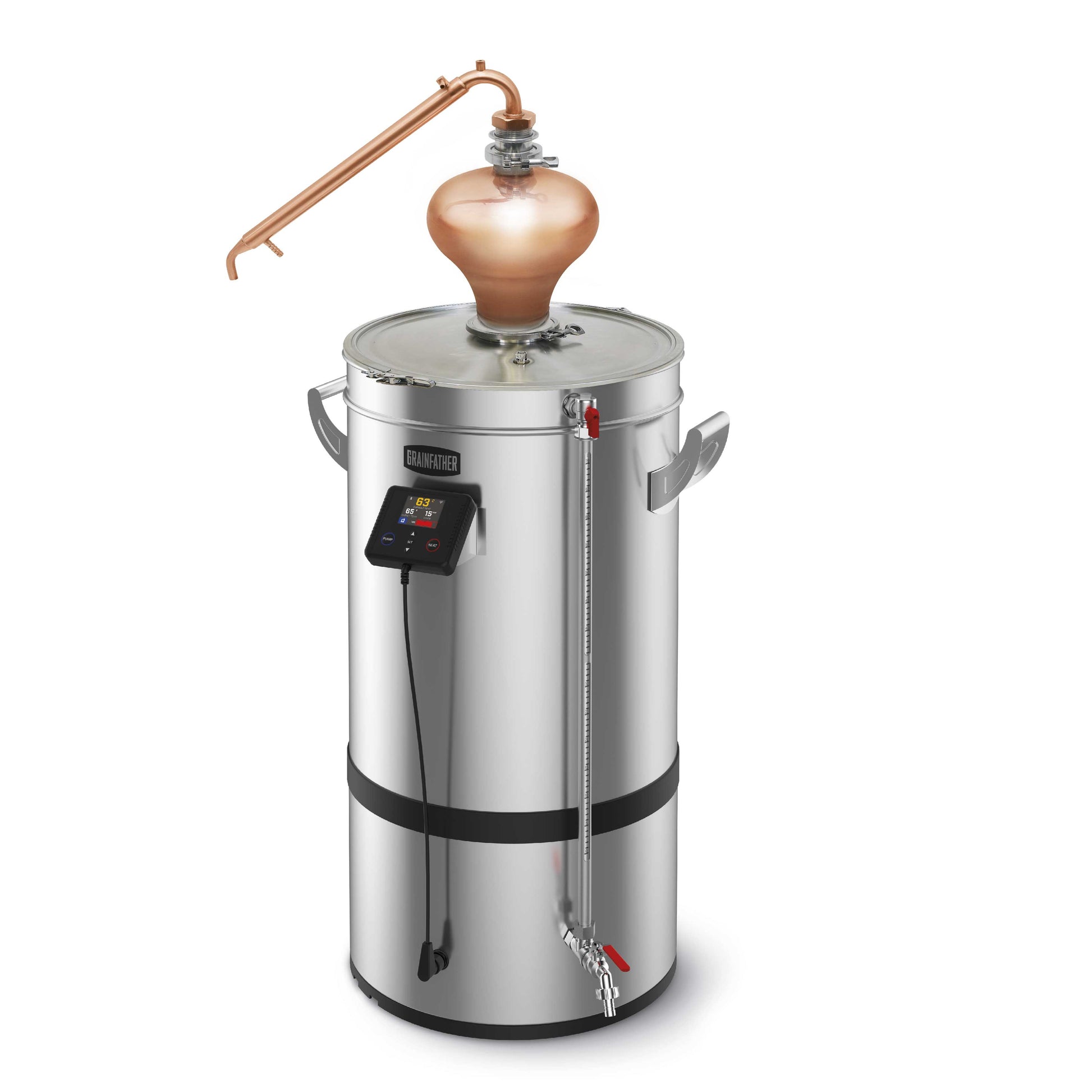

G70 + Distilling Lid + Alembic Attachments & Condenser

The ultimate all-in-one automated 70 L brewing system that can also be used for pot distillation. Ideal for brewing high quality beer and distilling hydrosols, water, and flavourful spirits like whiskey, bourbon, rum, and gin. This bundle includes the G70, G40 & G70 Distilling Lid, the Still Spirits Create+ Alembic Condenser, plus the Alembic Condenser Attachments Kit.

NOTE: The Create+ Alembic Condenser is tri-clamp compatible, so the DN40 Threaded Adapter included with this kit will not be required to connect to the condenser - your customer can connect the condenser straight to the Copper Alembic Helmet.

Features:

G70:

• Perforated grain basket for an improved brewing experience with no top plate or additional pipework required

• Integrated sight glass now a part of the recirculation pipework for easy volume reading

• Sleek 304 grade stainless steel body

• Connect your mobile device to the smart wireless controller via the Grainfather App and manage your brew remotely

• Conical base for maximum wort transfer

• Efficient and sanitary brew transfer with the Counterflow Chiller

• Quick and easy cleaning with CIP (clean in place) capability

• PID (proportional integral derivative) heating control for accurate temperature management during mashing

• Rolled edge grain plate and large bottom-mounted dual-stage hop filter

• Backed by a 3-year warranty

Condenser:

• For intermediate-advanced distilling

• Made from Copper

• Designed in New Zealand

• Connects to 2" tri-clamp distilling accessories

• Suitable for distilling water, hydrosols, and flavourful spirits

• Kitchen, laundry and garden tap adapters for ease of cooling water connection

• Warranty Period: 3 Years

Lid:

• Sleek, 304 grade stainless steel build

• Includes a standard 4" tri-clamp connection that can be used to connect third-party distilling equipment

• Pressure relief valve for safer distilling

• Can be used as a steam condenser while brewing indoors (when paired with the appropriate equipment)

Attachments Kit:

• 304 Grade Stainless Steel Construction

• Attachments Kit:

• Copper Helmet to Aid in Reduction of Sulphur Compounds and Retention and Development of Flavour

Grainfather G70v2:

• Wi-Fi controller

• Counterflow Chiller

• Hop filter

• Perforated grain basket

• Grain plate

• Glass lid

• Lifting bar

• Recirculation hose

• Built-in pump

Still Spirits Create+ Alembic Condenser:

• Create+ Alembic Copper Condenser

• Create+ 2" Tri-Clamp (includes silicone gasket)

• Digital Thermometer with mounting bracket

• 2 x Cooling Water Tubes

• Silicone Distillate Tube

• Kitchen, Garden and Laundry Tap Adapters

• Instructions

Lid:

• Distilling Lid

• 2 x Flat Seals

• Clamp

• Lid Seal

Grainfather Alembic Condenser Attachments Kit :

• 4” Tri-Clamp

• 4” Tri-Clamp Seal

• 4” to 2” Copper Alembic Helmet

• 2” Tri-Clamp

• 2” Tri-Clamp Seal

• 2” to 1 ½” (48mm) DN40 Thread Adapter

• Condenser Silicone O-Ring

Grainfather G70v2:

• SIZE: 900 x 555mm

• WEIGHT: 32.5kg

• MAX PREBOIL VOLUME: 70L

• BATCH VOLUME: Max: 60L/Min: 30L

• GRAIN BILL: Max: 16kg (or 17kg with used of a top plate - sold separately)/Min: 8kg

• POWER: 3300W, 230V

• CONNECTIVITY: WiFi control

Create+ Alembic Condenser:

• Ease of Use: Intermediate to advanced

• Purity: Distills at up to 70% ABV (140 US proof)*

• Warranty Period: 3 Years

Lid:

• 304 Grade Stainless Steel Construction

• Standard 4” tri-clamp opening (industry standard)

• Pressure relief valve

• Barrel clamp locking mechanism

Distilling Attachments:

• 304 Grade Stainless Steel Construction

• Copper Helmet to Aid in Reduction of Sulphur Compounds and Retention and Development of Flavour

IMPORTANT:

The G40 & G70 Distilling Lid is designed primarily for small to medium-sized still heads that do not have heavy, off-centre attachments. The lid is reasonably flexible and is sturdy enough to fit a still head that is within the following specifications:

A still head height up to 1.1 m (3.6 ft) from the lid.

A still head weight up to 11 kg (24 lbs), including up to 2 kg (4.4 lbs) of off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6”) to the main column.

We recommend external support if:

Your still exceeds the above specifications.

The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-centre weight.

If the main still head (column) is noticeably leaning.

*Grainfather G40 and G70 sold separately.
